What is Camlock Fittings?
Camlock Fittings and gaskets are hose couplings that connect or disconnect pipe, tubing, or hose without tools. Cam and groove fittings, also known as camlock fittings, consist of a male adapter and a female coupler with handles or cam levers. The cam and groove gasket fits inside the female coupler and together they form a leakproof seal. Camlock fittings and gaskets are used with liquids, powders, or gases in food processing, agriculture, chemical, and manufacturing applications, etc.
Parts of Camlock Fittings:
There are 8 standard parts
Part A: Male Adapter x Female Thread
Part B: Female Coupler x Male Thread
Part C: Female Coupler x Hose Tail
Part D: Female Coupler x Female Thread
Part E: Male Adapter x Hose Tail
Part F: Male Adapter x Male Thread
Part DC: Dust Cap
Part DP: Dust Plug
Also, there are other parts:
Part DA: Female Coupler x Male Adapter
Part DD: Female Coupler x Female Coupler
Part AA: Male Adapter x Male Adapter
Reducing part A
Reducing Part B
Reducing Part C
Reducing Part D
Reducing Part E
Reducing Part F

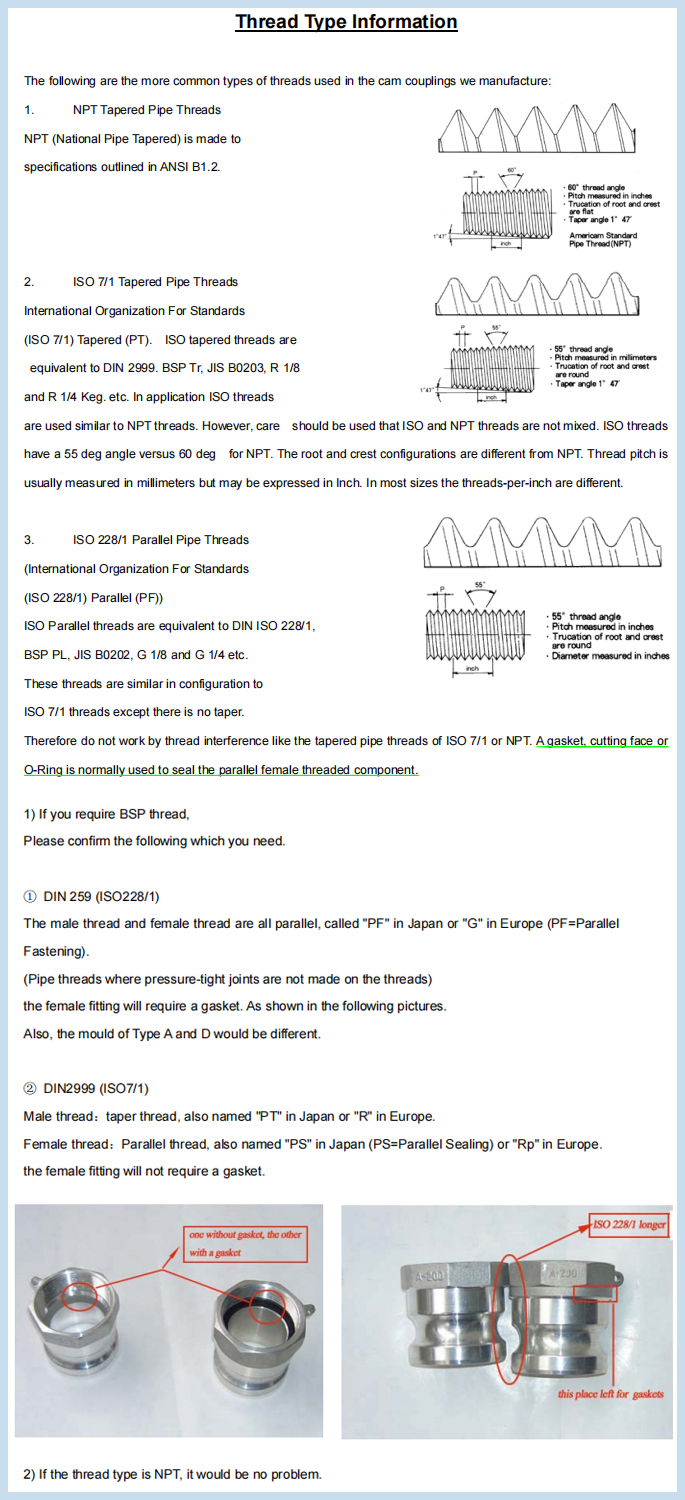

Thread Type Information of Camlock Fittings:
How Does a Camlock Work?
The assembly consists of a male adapter and female coupler. To connect and disconnect:
Extend the cam-lever on the coupler outwards and put the male adapter into the female coupler
Close both cam lever at the same time until the two halves are coupled together
Close both cam-levers at the same time insures that the adapter is pulled down consistently onto the seal making a leak proof assembly for the safe transfer of liquids.
Reverse the process to disconnect the fitting.
How To Measure The Dimensions of Camlock Fittings?
Measuring a metal camlock fitting is easy. For instance, if the hose tail, male or female thread is 2” then the camlock coupling would be known as a 2” camlock fittings.
Polypropylene and nylon camlock fittings is slightly different. There is no international standard and different manufacturers have different head sizes. In the 1/2” size, the body is actually ¾” but its the thread (or hose tail) that is ½”. There are also some anomalies in the 1 1/4” sized systems.
With most camlock fittings, measure the Outside Diameter (OD) of the male adapter head or the Inside Diameter (ID) of the female coupler. This will identify the size of camlock fitting.
Are Camlocks fittings Interchangable?
Between different manufacturers, camlock fittings are interchangeable with the exception of 1/2”, 5” and 8”. The A-A-59326A Mil Standard does not apply to 5” and 8” camlock fittings due to the presence of two versions of camlock fittings in today’s market.
·
How Do I Choose The Right Camlock Fitting?
When specifying a camlock fitting, there are seven fields of information required.
Size, Temperature, Application, Material or media used, Pressure rating required, Thread type, Delivery
Camlock fitting Gaskets
Cam and groove gaskets are put in the female coupler, the pressure of the fitting pushes against the gasket to create a tight seal.
EPDM Camlock fitting Gaskets
EPDM (ethylene propylene diene terpolymer) Camlock fitting gaskets provide ozone resistance, it has good chemical and temperature resistance, but poor resistance to petroleum fluids. EPDM gaskets are used for outdoor applications including agriculture, construction, and food and dairy processing. Our Poly and Nylon Camlock Fitting use EPDM or NBR gasket
Neoprene Camlock Fitting Gaskets
Neoprene Camlock Fitting gaskets are made from a synthetic rubber material designed to be flexible, durable, and resistant to compression and liquids including water, oil, and solvents. Neoprene gaskets are used in many industries including electronics, marine, and automotive, etc.
Nitrile(NBR) Camlock Fitting Gaskets
Nitrile (Buna-N or acrylonitrile-butadiene) Camlock Fitting gaskets offer excellent resistance to oils and moderate resistance to aromatics and solvents. NBR Camlock Fitting gaskets are typically used in aerospace, petrochemical, and military and defense applications.
Silicone Camlock Fitting Gaskets
Silicone Camlock Fitting gaskets are made of a rubber known for its low compression set, superior flexibility and elongation, and durability. Odorless and tasteless, silicone Camlock Fitting gaskets are commonly used in surgical and food processing applications.
Application of Camlock Fittings
Some of the standard applications include:
Industrial Hoses: Camlock fittings easily connect industrial hoses for various applications.
Pumps: They are often used to quickly connect hose to pumps and valves.
Chemical Tanks: Camlock Fittings can quickly connect tanks for processing, storage, and transport.
Agricultural Irrigation: Camlock fittings are usually used in agricultural irrigation systems for connecting hoses and tubing.
Fuel Lines: Camlock fittings are often used in fuel lines to easily connect and disconnect hoses, tanks, and other components.
Marine: Camlock fittings are used in marine applications such as the connection of fuel, water, and bilge hoses.
Food Processing: Camlock fittings are used in food processing applications to provide a connection between hoses and other components.
Our Camlock Fitting parameters:
Product Name: Camlock Quick Coupling
Size: 1/2” -8”
Type: A B C D E F DC DP
Material: Aluminium ; Brass ; Stainless Steel ; PP; Nylon
Standard:A–A-59326(previously called MIL-C-27487)or DIN 2828.
Technology: Aluminum Camlock: Gravity Casting, Stainless Steel: Investment Casting, Brass Camlock: Sand Casting or Forging, PP Camlock: Injection
Surface Treatment:Sand Blasting
Accessories: We equipped with Rings, Pins and Safety clips
Material of Handle: Aluminium handles; Stainless steel handles; Brass handles
Pressure: 1/2” -2” 250psi、2-1/2”-4” 150psi 、5”-6” 75 psi 、8” 50psi
Thread Type: NPT BSP
Gasket: NBR, EPDM, Viton, PTFE gasket are all available. If you have any special requests of material, just feel free to contact us.
Application: Pipe Lines Connect;Industry; Oil; Gas
